A Baseline Model of Schumpeterian Growth

14.1.1. Preferences and Technology. The economy is in continuous time and admits a representative household with the standard CRRA preferences, (13.1), as in the previ­ous chapter.

where C (t) is consumption, X (t) is aggregate spending on machines, and Z (t) is total expenditure on R&D at time t.

There is a continuum of machines used in the production of a unique final good. Since there will be no expansion of inputs/machine varieties, the measure of inputs can be nor­malized to 1 without loss of any generality. Each machine line is denoted by ν ∈ [0,1]. The engine of economic growth here will be process innovations that lead to quality improvements. Let us first specify how the qualities of different machine lines change over time. Let q (ν, t) be the quality of machine line ν at time t. The following “quality ladder” determines the quality of each machine type:

where λ > 1 and n (ν,t) denotes the number of innovations on this machine line between time 0 and time t. This specification implies that there is a ladder of quality for each machine type, and each innovation takes the machine quality up by one rung in this ladder. These rungs are proportionally equi-distant, so that each improvement leads to a proportional increase in quality by an amount λ > 1. Growth will be the result of these quality improvements.

The production function of the final good is similar to that in the previous chapter, except that now the quality of the machines matters for productivity. The aggregate production function takes the form

where x(ν, t | q) is the quantity of the machine of type ν of quality q used in the production process.

where

with εβ ? 1∕β, which again emphasizes the continuity with the Dixit-Stiglitz model of Chap­ter 12.

An implicit assumption in (14.3) is that at any point in time only one quality of any machine is used. This is without loss of any generality, since in equilibrium only the highest- quality machines of each type will be used, and this will be the source of creative destruction; when a higher-quality machine is invented it will replace (“destroy”) the previous vintage of of the same machine.

I next specify the technology for producing machines of different qualities and the innova­tion possibilities frontier of this economy. New machine vintages are invented by R&D. The R&D process is cumulative, in the sense that new R&D builds on the knowhow of existing machines. For example, consider the machine line ν that has quality q (ν, t) at time t. R&D on this machine line will attempt to improve over this quality. If a firm spends Z (ν, t) units of the final good for research on this machine line, then it generates a flow rate ηZ (ν, t) /q (ν, t) of innovation. The innovation advances the knowhow of the production of this machine to the new rung of the quality ladder, thus creates a machine of type ν with quality λq (ν, t). Note that one unit of R&D spending is proportionately less effective when applied to a more advanced machine. This is intuitive, since we expect research on more advanced machines to be more difficult. It is also convenient from a mathematical point of view, since the bene fit of research is also increasing with the quality of the machine (in particular, the quality im­provements are proportional, with an innovation increasing quality from q (ν, t) to λq (ν, t)).

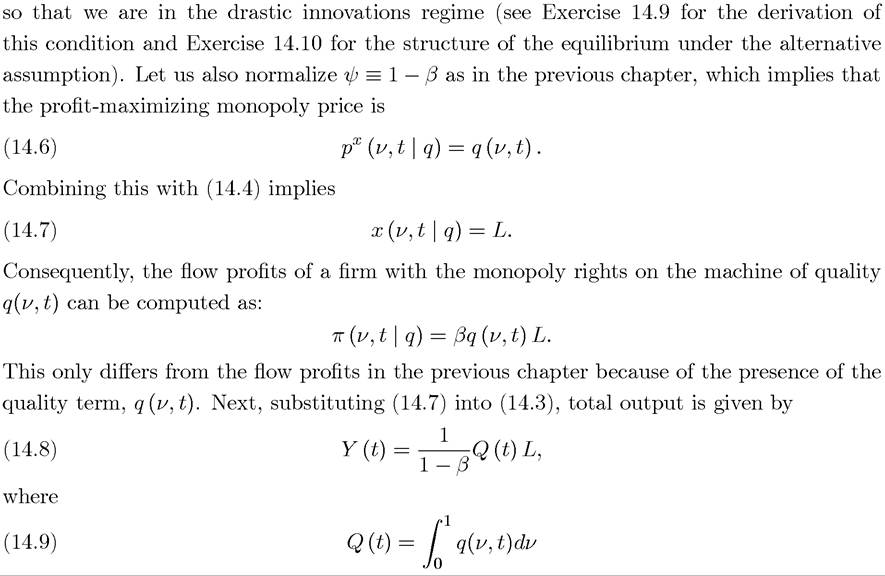

Once a particular machine of quality q (ν, t) has been invented, any quantity of this machine can be produced at the marginal cost ψq (ν,t). Once again, the fact that the marginal cost is proportional to the quality of the machine is natural, since producing higher-quality machines should be more expensive.

One noteworthy issue here concerns the identity of the firm that will undertake R&D and innovation. In the expanding varieties model, this was irrelevant, since machines could not be improved upon, so there was only R&D for new machines, and who undertook the R&D was not important. Here, in contrast, existing machines can be (and are) improved, and this is the source of economic growth. We have already seen in Chapter 12 that if the costs of R&D are identical for incumbents and new firms, Arrow’s replacement effect will imply that it will be the new entrants that undertake the R&D. The same applies in this model. The incumbent has weaker incentives to innovate, since it would be replacing its own machine, and thus destroying the profits that it is already making. In contrast, a new entrant does not have this replacement calculation in mind. As a result, with the same technology of innovation, it will always be the entrants that undertake the R&D investments in this model (see Exercise 14.2).

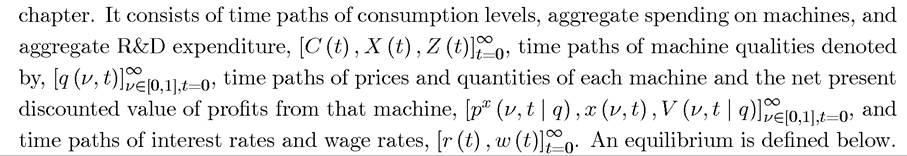

14.1.2. Equilibrium. An allocation in this economy is similar to that in the previous

Let us start with the aggregate production function for the final good producers. A similar analysis to that in the previous chapter implies that the demand for machines is given by

where p^x (ν, t | q) refers to the price of machine type ν of quality q (ν, t) at time t. This expression stands for p^x (ν, t | q (ν, t)), but there should be no confusion in this notation since it is clear that q here refers to q (ν,t), and I will use this notation for other variables as well. The price p^x (ν, t | q) will be determined by the profit-maximization of the monopolist holding the patent for machine of type ν of quality q (ν, t). Note that the demand from the final good sector for machines in (14.4) is isoelastic as in the previous chapter, so the unconstrained monopoly price is again a constant markup over marginal cost. However, contrary to the situation in the previous chapter, there is now competition between firms that have access to different vintages of the machine. This implies that, as in Chapter 12, we need to consider two regimes, one in which the innovation is “drastic” so that each firm can charge the unconstrained monopoly price, and the other one in which limit prices have to be used. Which regime we are in does not make any difference to the mathematical structure or to the substantive implications of the model.

is the average total quality of machines. This expression closely parallels the derived produc­tion function (13.12) in the previous chapter, except that labor productivity is now determined by the average quality of the machines, Q (t) (instead of the number of machine varieties, N (t), in the previous chapter). This expression also clarifies the reasoning for the particular functional form assumptions above. In particular, the reader can verify that it is the linear­ity of the aggregate production function of the final good, (14.3), in the quality of machines that makes labor productivity depend on average qualities. With alternative assumptions, a similar expression to (14.8) would still obtain, but with a more complicated aggregator of machine qualities than the simple average (see, for example, Section 14.4). Next, aggregate spending on machines is immediately obtained as

Similar to the previous chapter, labor, which is only used in the final good sector, receives an equilibrium wage rate of

I next specify the value function for the monopolist of variety ν of quality q (ν, t) at time t. As before, despite the fact that each firm generates a stochastic stream of revenues, the presence of many firms with independent “draws” implies that each should maximize expected profits. The net present value of expected profits can be written in the Hamilton- Jacobi-Bellman form as follows

where z(ν, t | q) is the rate at which new innovations occur in sector ν at time t, while π(ν, t | q) is the flow of profits.

Free entry again implies

In other words, the value of spending one unit of the final good should not be strictly positive. Recall that one unit of the final good spent on R&D for a machine of quality λ^-1q has a flow rate of success equal to η/ (λ^-1q), and in this case, it generates a new machine of quality q, which will have a net present value gain of V(ν,t | q). If there is positive R&D, that is, if Z (ν,t | q) > 0, then the free-entry condition must hold as equality.

Note also that even though the quality of individual machines, the q (ν, t)’s, are stochastic (and depend on success in R&D), as long as R&D expenditures, the Z (ν,t | q)’s, are nonsto­chastic, average quality Q (t), and thus total output, Y (t), and total spending on machines, X (t), will be nonstochastic. This feature will significantly simplify the notation and the analysis.

Consumer maximization again implies the familiar Euler equation,

and the transversality condition takes the form

for all q. This transversality condition is intuitive, since the total value of corporate assets is now Jθ¹ V (ν,t | q) dν. Even though the evolution of the quality of each machine line is stochastic, the value of a machine of type ν of quality q at time t, V (ν,t | q), is nonstochastic. Either q is not the highest quality in this machine line, in which case V (ν,t | q) is equal to 0, or alternatively, it is given by (14.12).

These equations complete the description of the environment. An equilibrium can then be represented as time paths of consumption, aggregate spending on machines, and aggregate

(14.12) and (14.13), time paths of prices and quantities of machines that have highest quality in their lines at that point in time and the net present discounted value of profits from those

514

I again start with BGP, where output and consumption grow at constant rates.

14.1.3. Balanced Growth Path. In the BGP, consumption grows at the constant rate gβ. With familiar arguments, this must be the same rate as output growth, g*. Moreover, from (14.14), the interest rate must be constant, that is, r (t) = r* for all t.

If there is positive growth in this BGP equilibrium, then there must be research at least in some sectors. Since both profits and R&D costs are proportional to quality, whenever the free-entry condition (14.13) holds as equality for one machine type, it will hold as equality for all of them. This, in turn, implies that

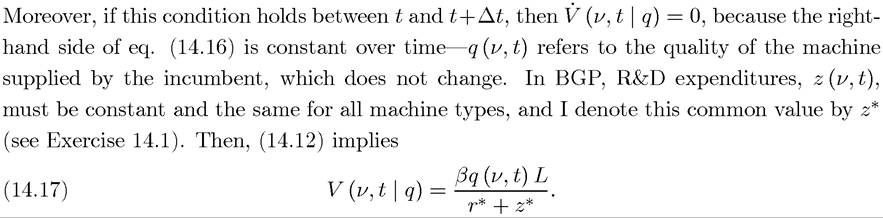

Notice the difference between this value function and those in the previous chapter: instead of the discount rate r*, the denominator has the effective discount rate, r* + z*, because incumbent monopolists understand that new innovations will replace them.

Combining this equation with (14.16),

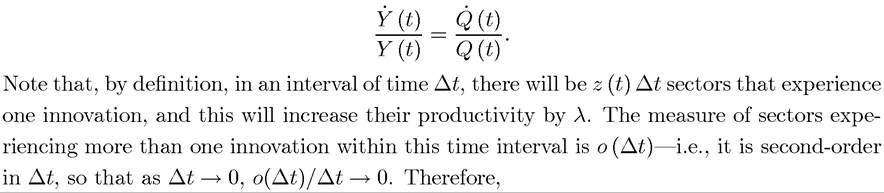

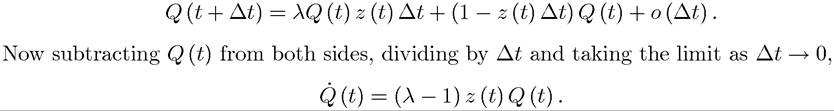

To solve for the BGP equilibrium, we need a final equation relating the BGP growth rate of the economy, g*, to z*. From (14.8), this is given by

Therefore,

Now combining (14.18)-(14.20), the BGP growth rate of output and consumption is:

This establishes the following proposition.

PROPOSITION 14.1. Consider the model of Schumpeterian growth described above. Sup­pose that

Then, there exists a unique BGP in which average quality of machines, output and consump­tion grow at rate g* given by (14.21). The rate of innovation is g* / (λ — 1).

Proof. Most of the proof is given in the preceding analysis. In Exercise 14.4 you are asked to check that the BGP equilibrium is unique and satisfies the transversality condition.

?

The above analysis illustrates that the mathematical structure of the model is quite similar to those analyzed in the previous chapter. Nevertheless, the feature of creative destruction, the process of incumbent monopolists being replaced by new entrants, is new and provides a very different interpretation of the growth process. I return to some of the applications of creative destruction below.

Before doing this, let us briefly look at transitional dynamics in this economy. Similar arguments to those used in the previous chapter establish the following result:

PROPOSITION 14.2. In the model of Schumpeterian growth described above, starting with any average quality of machines Q (0) > 0, there are no transitional dynamics and the equi­librium path always involves constant growth at the rate g* given by (14.21).

Proof. See Exercise 14.5. ?

A notable feature of the model, which is again related to the functional form of the aggregate production function (14.3), is that only the average quality of machines, Q (t), matters for the allocation of resources. Moreover, the incentives to undertake research are identical for two machine types ν and ν⁰, with different quality levels q (ν,t) and q (ν⁰,t). Thus there are no differential incentives to undertake different R&D investments for more and less advanced machines. This is again a feature of the functional forms chosen here, and Exercise 14.14 shows that in different circumstances this result may not apply. Nevertheless, the specification chosen in this section is appealing, since it implies that research will be directed at a broad range of machines rather than a specific subset of the available types of machines.

14.1.4. Pareto Optimality. This equilibrium, like that of the endogenous technology model with expanding varieties, is typically Pareto suboptimal. The first reason for this is the appropriability effect, which results because monopolists are not able to capture the entire social gain created by an innovation. However, Schumpeterian growth also introduces the business stealing effect discussed in Chapter 12. Consequently, the equilibrium rate of innovation and growth can now be too high or too low. I now investigate this question.

I proceed as in the previous chapter, first deriving quantities of machines that will be used in the final good sector by the social planner. In the social planner’s allocation there is no markup on machines, thus

Substituting this into (14.3),

where again the superscript S refers to the social planner’s allocation. The net output that can be distributed between consumption and research expenditure is

Moreover, given the specification of the innovation possibilities frontier above, the social planner can improve the aggregate technology as follows:

because R&D spending of Z^s (t) leads to the discovery of better vintages at the flow rate η and each new vintage increases average quality by a proportional amount λ — 1.

Now, given this equation, the maximization problem of the social planner can be written as

subject to

where the constraint equation uses net output, (14.23), and the resource constraint, (14.1). In this problem,is the state variable, andis the control variable. To characterize this solution, let us set up the current-value Hamiltonian as

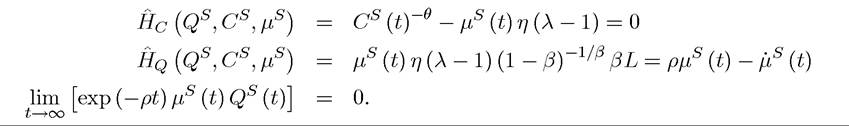

The necessary conditions for a maximum are

Moreover, it is straightforward to verify that the current-value Hamiltonian is concave in C and Q, so that the sufficiency conditions in Theorem 7.14 are satisfied and the solution to these conditions gives the unique optimal plan (see Exercise 14.8). Combining these conditions, we obtain the following growth rate for consumption in the social planner’s allocation (see again Exercise 14.8):

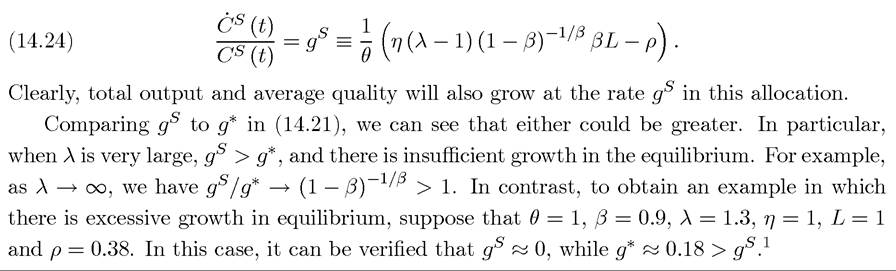

This illustrates the counteracting influences of the appropriability and business stealing effects discussed above. The following proposition summarizes this result:

PROPOSITION 14.3. In the model of Schumpeterian growth described above, the decen­tralized equilibrium is generally Pareto suboptimal and may have a higher or lower rate of innovation and growth than the Pareto optimal allocation.

It is also straightforward to verify that as in the models of the previous section, there is a scale effect, and thus population growth would lead to an exploding growth path. Exercise 14.11 asks you to construct a Schumpeterian growth model without scale effects.

14.1.5. Policy in the Model of Schumpeterian Growth. I now use the Schum­peterian growth model to analyze the effects of policy on economic growth. As in the model of the previous two chapters, anti-trust policy, patent policy and taxation will affect the equilibrium growth rate. For example, two economies that tax corporate incomes at different rates, say τ and τ⁰, will grow at different rates.

There is a sense in which the current model is much more appropriate for conducting policy analysis than the expanding varieties models, however. In those models, there was no reason for any agent in the economy to support distortionary taxes.² In contrast, the fact that

¹Notice that the combination of β = 0.9 and λ = 1.3 are consistent with (14.5), which was used in deriving the equilibrium growth rate g*.

₂

²Naturally, one can enrich these models so that tax revenues are distributed unequally across agents, for example, with taxes on capital distributed to workers. In this case, even in the basic neoclassical growth model, some groups could prefer distortionary taxes. Such models will be discussed in Part 8 of the book.

growth takes place through creative destruction here implies that there is a natural conflict of interest, and certain types of distortionary policies may have a natural constituency. To illustrate this point, which will be discussed in greater detail in Part 8 of the book, suppose that there is a tax τ imposed on R&D spending. This has no effect on the profits of existing monopolists, and only influences their net present discounted value via replacement. Since

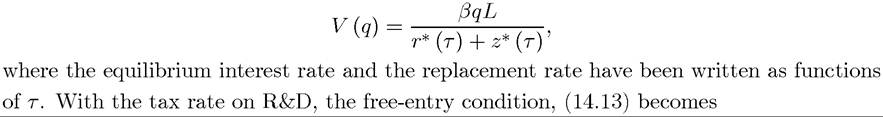

taxes on R&D will discourage R&D, there will be replacement at a slower rate, that is, BGP R&D expenditure z* will fall. This directly increases the steady-state value of all monopolists given by (14.17). In particular, denoting the value of a monopolist with a machine of quality q by V (q), we have

This equation shows that V (q) is clearly increasing in the tax rate on R&D, τ. Combining the previous two equations, it can be seen that in response to a positive rate of taxation, r* (τ) + z* (τ) must adjust downward, so that the value of current monopolists increases (consistent with the previous equation). Intuitively, when the costs of R&D are raised because of tax policy, the value of a successful innovation, V (q), must increase to satisfy the free-entry condition. This can only happen through a decline in the effective discount rate r* (τ)+z* (τ). A lower effective discount rate, in turn, is achieved by a decline in the equilibrium growth rate of the economy, which now takes the form

This growth rate is indeed strictly decreasing in τ. Nevertheless, as the previous expression shows, incumbent monopolists directly benefit from an increase in τ and would be in favor of such a policy. Essentially, in this model, slowing down the process of creative destruction is beneficial for incumbents, creating a rationale for growth-retarding policies to emerge in equilibrium.

Therefore, an important advantage of models of Schumpeterian growth is that they start providing us clues about why some societies may adopt policies that reduce the growth rate. Since taxing R&D by new entrants benefits incumbent monopolists, when incumbents are politically powerful, such distortionary taxes can emerge in the political economy equilibrium, even though they are not in the interest of the society at large.
